Product Details
Advanced electronic controls.

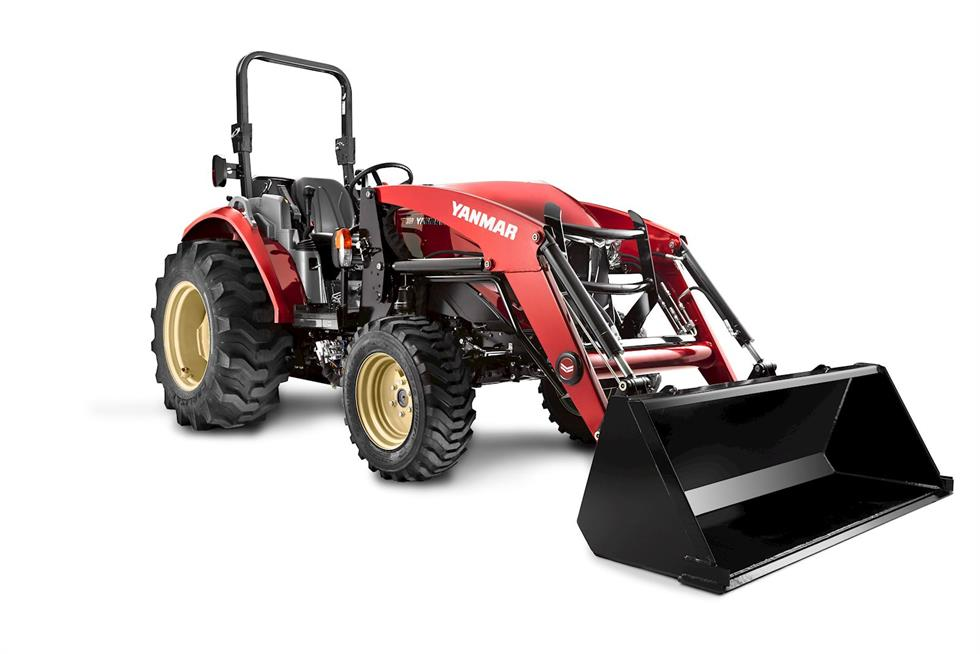

When you need a tractor for bigger and tougher jobs, look no further than the Yanmar YT359. Comfortable and easy to operate, the YT359 uses advanced electronic controls and an integrated hydraulic mechanical transmission (i-HMT). No longer do you have to choose between an efficient, constant speed and flexible operation. The i-HMT creates the standard for performance versatility.
High power transfer ratio
Repeatable operating speed
Low fuel consumption due to increased transmission efficiency
Step-less main shift
Best speed possible for implement
Clutch-less shifting
Vehicle stop without clutch
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT359 includes an autothrottle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.
Features
Ergonomic operator station
Controls on joystick
Large LCD display integrates with controls
Anti-stall
Electronic cruise control
Rear remote
Loader control valve & joystick
12V outlet
Advanced electronic controls
Auto-throttle
A/B Mode
Throttle boost button
i-HMT Transmission
Loader 3rd function valve optional
Featured Specs
Model
YT359
Gross Power: EPA Regulation HP (kW)
58.9 HP (43.9 kW)*
Overall length (with 3PH and R4 Tires)
132.1” (3,355 mm)
Overall Width (with R4 Tires)
70.6” (1,793 mm)
Overall Height (with Roll-Over Protection, and R4 tires)
95.7” (2,431 mm)
Transmission
I-HMT(Integrated Hydro Mechanical Transmission)
Drive Type
2WD/4WD selectable engagement
Lift Capacity (Pivot Pin) lb. (kg)
2,500 lbs. (1,134 kg)
Bucket Width in. (mm)
72” (1,829 mm)
PTO Power HP (kW)
52.0 HP (38.3kW)
Rear PTO Speed/Engine RPM
540 RPM
Mid PTO Speed/Engine RPM
Wheel Base
77.4” (1,967 mm)
Front Tires (with R4)
10” – 16.5”
Rear Tires (with R4)
17.5” L – 24”
3-Point Hitch
Category 1
