Product Details
Advanced electronic controls.
High power transfer ratio
Repeatable operating speed
Low fuel consumption due to increased transmission efficiency
Step-less main shift
Best speed possible for implement
Clutch-less shifting
Vehicle stop without clutch

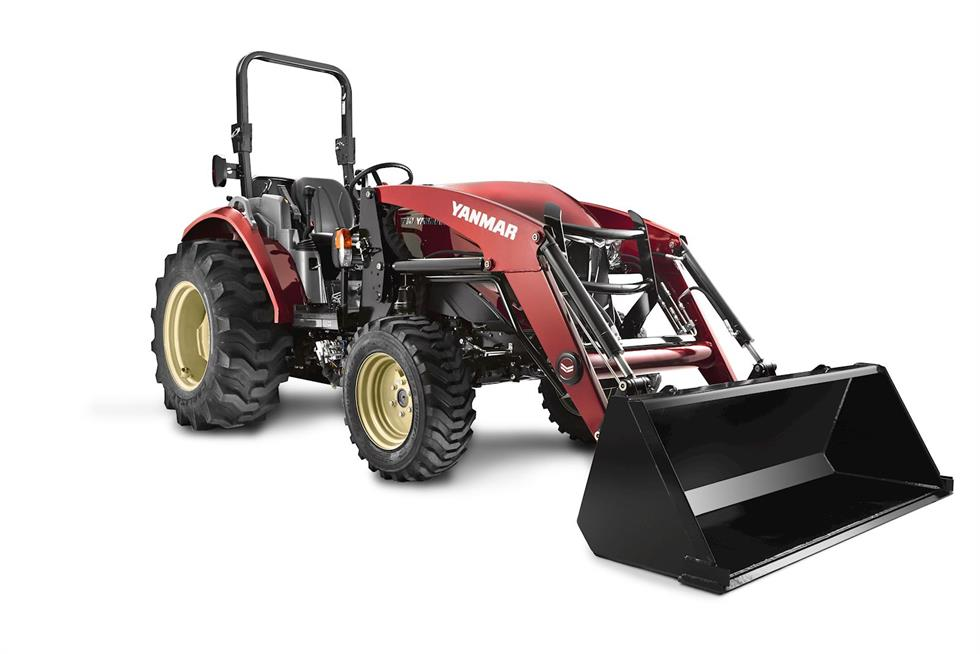

Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT347 includes an autothrottle that enables you to control the engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.
No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of the YANMAR YT347. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT347 and its innovative technology, you get both.
Features
Ergonomic operator station
Controls on joystick
Large LCD display integrates with controls
Anti-stall
Electronic cruise control
Rear remote
Loader control valve & joystick
12V outlet
Advanced electronic controls
Auto-throttle
A/B Mode
Throttle boost button
i-HMT Transmission
Loader 3rd function valve optional
Featured Specs
Model
YT347
Gross Power: EPA Regulation HP (kW)
46 HP (34.3 kW)*
Overall length (with 3PH and R4 Tires)
130.9” (3,325 mm)
Overall Width (with R4 Tires)
70.6” (1,793 mm)
Overall Height (with Roll-Over Protection, and R4 tires)
95.7” (2,431 mm)
Transmission
I-HMT(Integrated Hydro Mechanical Transmission)
Drive Type
2WD/4WD selectable engagement
Lift Capacity (Pivot Pin) lb. (kg)
2,500 lbs. (1,134 kg)
