Product Details
Old school work ethic with new school technology.
The original YM series tractors were referred to as “the over achievers” – and with features like 540 economy PTO, 2,500lb lift capacity, and Yanmar’s proven performance link technology – that legacy continues with the YM3.

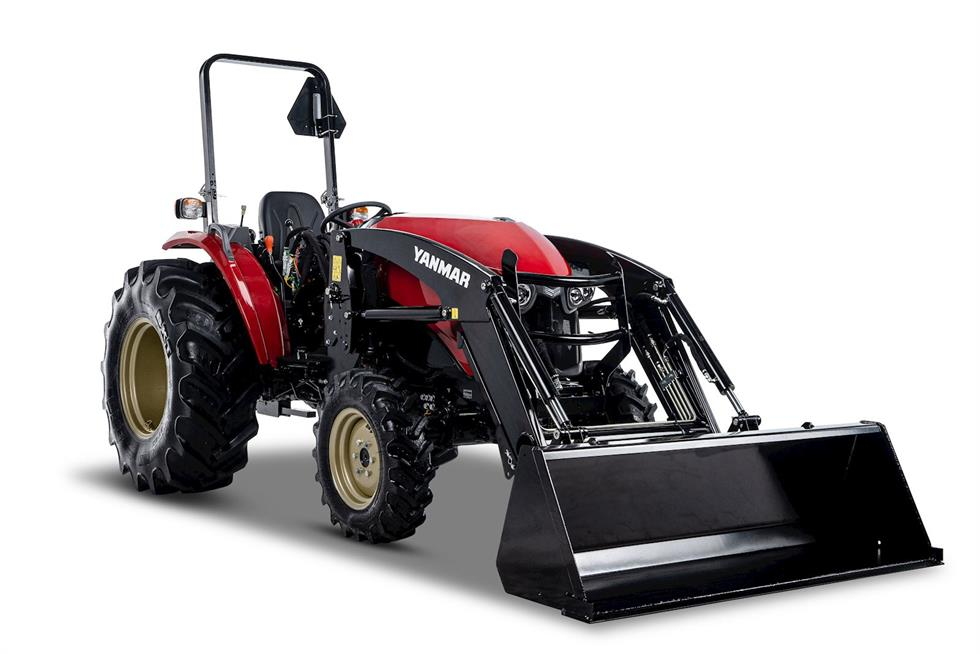

The YM359 is equipped with a 59-horsepower engine and a maximum traveling speed of up to 17.7mph.
Features
Synchronized shuttle shift
Single rear remote
15.3″ ground clearance
Wide 72″ bucket
Convenience designed in
Versatility with attachments
Flat iSO mount floorboard with anti-slip step
More power on the ground
Comfort and efficiency built right in
Featured Specs
Model
YM359
Gross Power: EPA Regulation HP (kW)
58.9(43.9)/2500
Overall length (with 3PH and R4 Tires)
133.9 (3400)
Overall Width (with R4 Tires)
70.9 (1801)
Overall Height (with Roll-Over Protection, and R4 tires)
98.0 (2490)
Transmission
Synchronized reverser/main shift, 2 range
Drive Type
Lift Capacity (Pivot Pin) lb. (kg)
2500
Bucket Width in. (mm)
72” (1829mm)
PTO Power HP (kW)
Rear PTO Speed/Engine RPM
540 / 2430 540E / 1764
Mid PTO Speed/Engine RPM
Wheel Base
77.5″
Front Tires (with R4)
10.0″ – 16.5″
Rear Tires (with R4)
16.9″ – 24″
3-Point Hitch
Category 1 & 2
