Product Details
Old school work ethic with new school technology.
The original YM series tractors were referred to as “the over achievers” – and with features like 540 economy PTO, 2,500lb lift capacity, and Yanmar’s proven performance link technology – that legacy continues with the YM3.

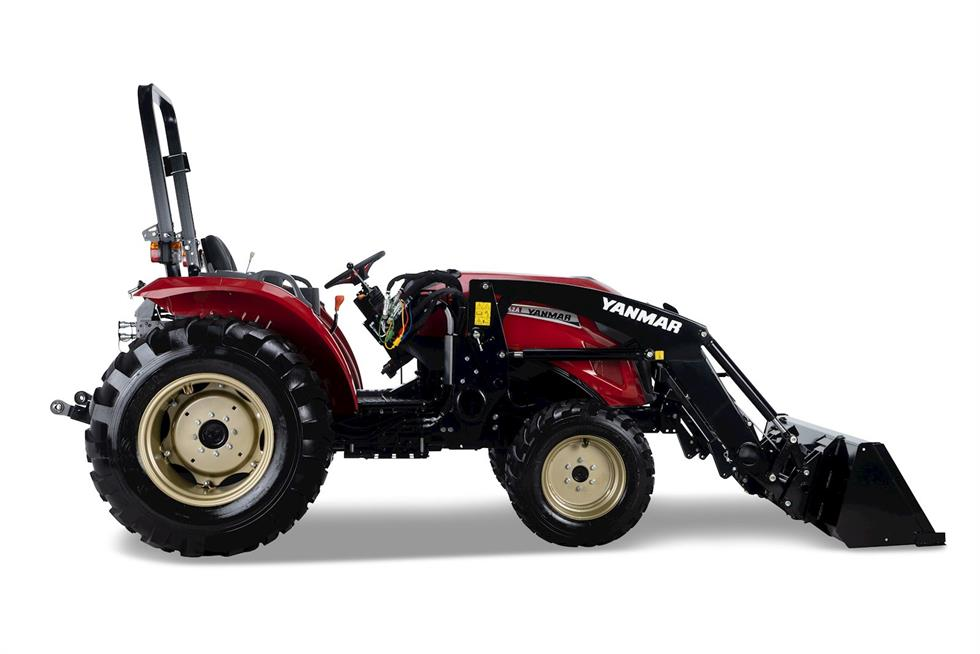

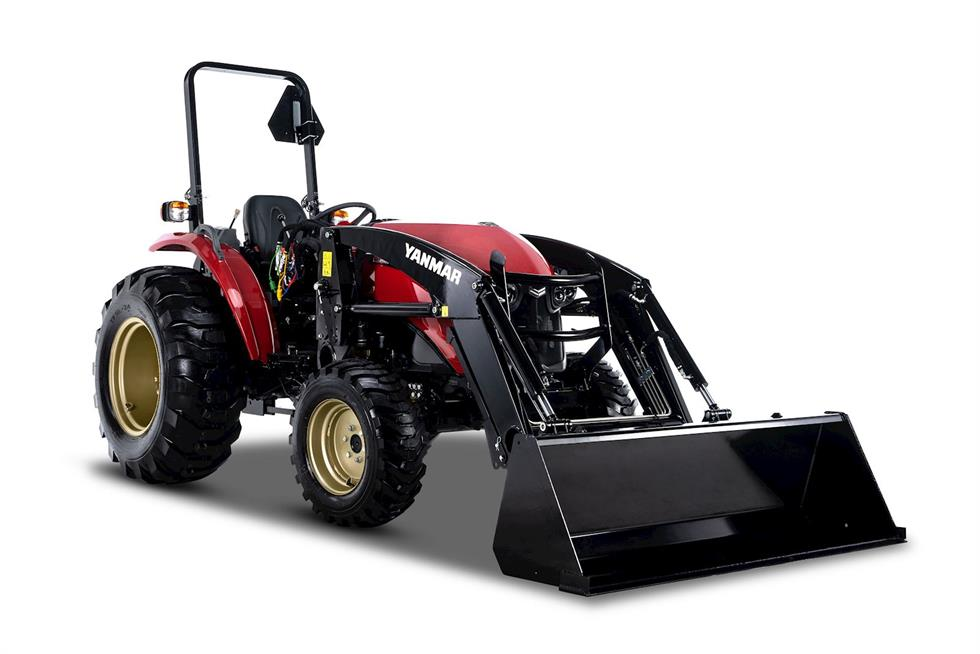

The YM342 is equipped with a 41 horspower engine and a maximum traveling speed of up to 17.7mph
Features
Synchronized shuttle shift
Single rear remote
15.3″ ground clearance
Wide 72″ bucket
Convenience designed in
Versatility with attachments
Flat iSO mount floorboard with anti-slip step
More power on the ground
Comfort and efficiency built right in
Featured Specs
Model
YM342
Gross Power: EPA Regulation HP (kW)
41.4 HP
Overall length (with 3PH and R4 Tires)
133.6 (2190)
Overall Width (with R4 Tires)
70.9 (1801)
Overall Height (with Roll-Over Protection, and R4 tires)
98.0 (2490)
Transmission
Synchronized Shuttle Shift
Drive Type
Lift Capacity (Pivot Pin) lb. (kg)
2500
Bucket Width in. (mm)
72” (1829mm)
PTO Power HP (kW)
31.0 HP
Rear PTO Speed/Engine RPM
540/540E
Mid PTO Speed/Engine RPM
Wheel Base
74.8″
Front Tires (with R4)
10.0″ – 16.5″
Rear Tires (with R4)
17.5″ L – 24″
3-Point Hitch
Category 1 & 2
