Product Details
12-Foot Flex-Wing Cutter for Compact and Utility Tractors

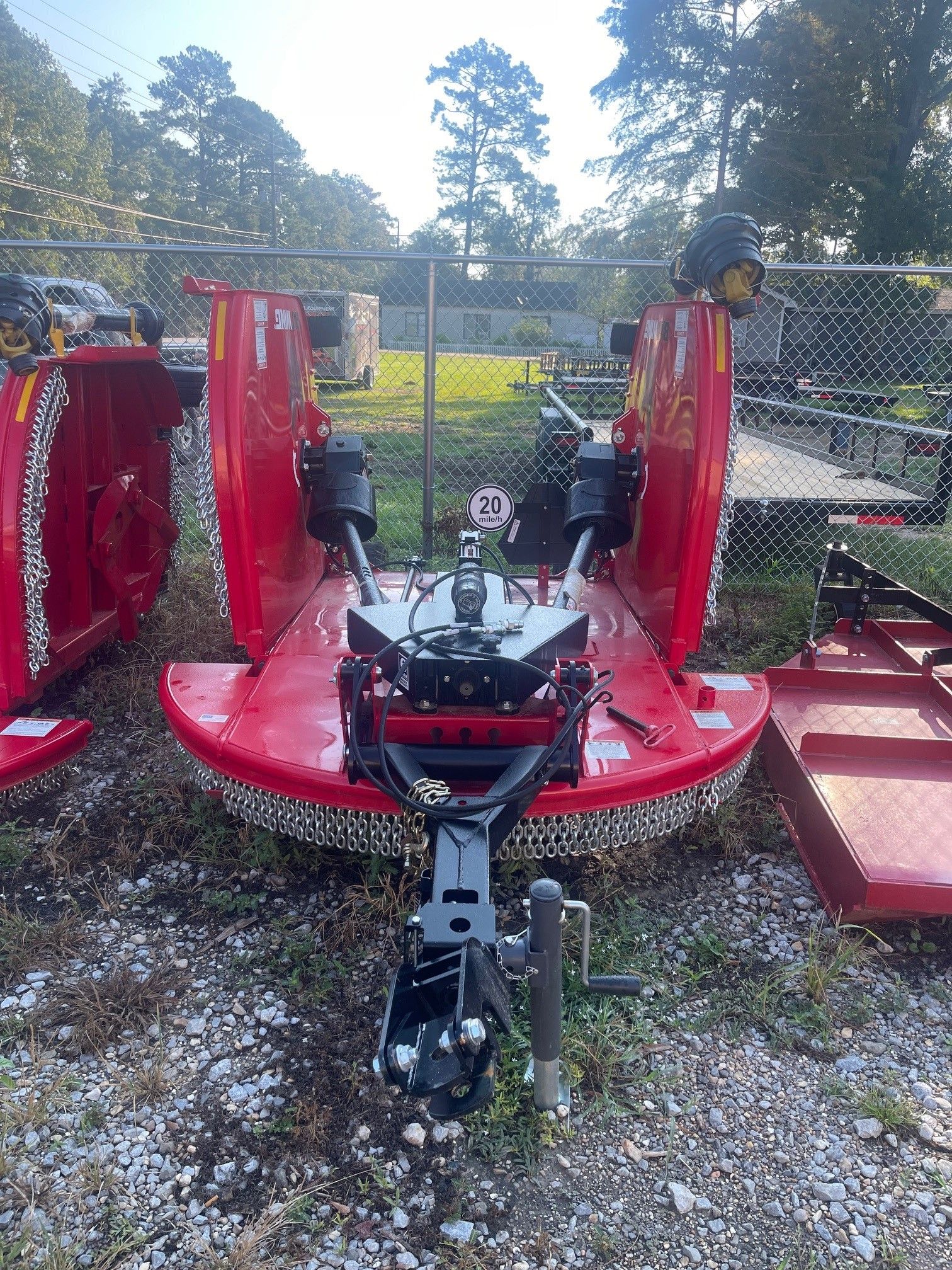

The Woods BW12 is a 12-foot flex-wing rotary cutter designed for landowners, farmers, and contractors who require a durable and efficient mowing solution. Ideal for compact and utility tractors with a minimum of 35 PTO horsepower, the BW12 offers a combination of strength, versatility, and ease of use.
Key Features:
- Cutting Width: 144 inches (12 feet)
- Cutting Height Range: 2 to 12 inches
- Cutting Capacity: Brush and saplings up to 1.5 inches in diameter
- Deck Construction: 12-gauge high-strength steel with a smooth, sloped design for durability and easy cleaning
- Side Skirt: 11 inches deep, made from 7-gauge steel for added strength
- Blade Tip Speed: 14,300 fpm (center); 14,900 fpm (wing)
- Blade Dimensions: 0.5 x 4 inches with a 6-inch overlap for consistent cutting
- Wing Flexibility: 90° up and 22° down to navigate uneven terrain
- Driveline Rating: CAT 4 CV main, CAT 3 wing
- Gearbox HP Rating: 160 HP (splitter); 75 HP (center and wing)
- Weight: Approximately 2,450 lbs
- Transport Width: 96 inches
- Hitch Type: Swivel clevis for easy attachment
- Suspension: Spring on center section for smoother operation
- Tire Options: 21-inch laminated or 24-inch severe-duty agricultural tires
The BW12 also features the Woods-exclusive EZ-Change™ Blade System, allowing for quick and easy blade replacements with only a 3/4″ wrench.
