Product Details
Versatile Digging Power for Compact and Subcompact Tractors

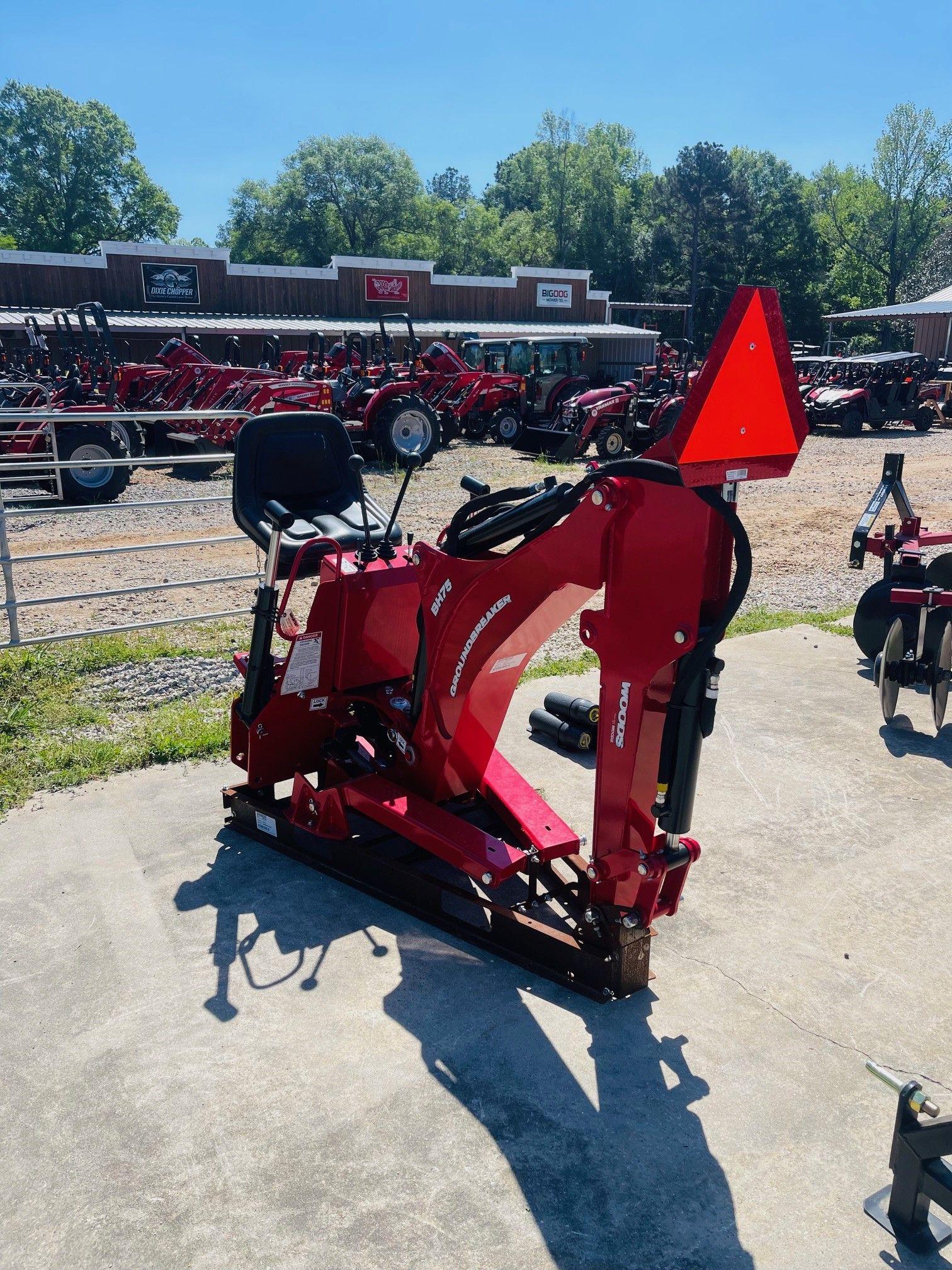

The Woods BH75 is a heavy-duty backhoe attachment designed to tackle a variety of digging and trenching tasks. With a maximum digging depth of 7.5 feet and a bucket digging force of 3,380 lbs, it's well-suited for landscaping, utility work, and property maintenance. The curved boom design enhances visibility and control, allowing for precise operation even in tight spaces.
Key Features:
- Digging Depth: Up to 90 inches (7.5 feet)
- Bucket Options: Widths of 9", 12", 16", 18", and 24"
- Mounting: Compatible with sub-frame or 3-point hitch mounts for various tractor models
- Operator Comfort: High-back seat and open platform for ease of use
- Durability: Bolt-on bucket teeth and greaseable end pins for extended service life
Specifications:
- Tractor Compatibility: PTO HP range of 20–40
- Reach from Swing Pivot: 119 inches
- Loading Height: 73 inches
- Transport Dimensions: Length of 45 inches; height of 74 inches
- Weight: Approximately 842 lbs (frame only)
- Swing Arc: 180°
- Relief Pressure: 2,465 psi
- Dipperstick Digging Force: 2,230 lbs
