Product Details

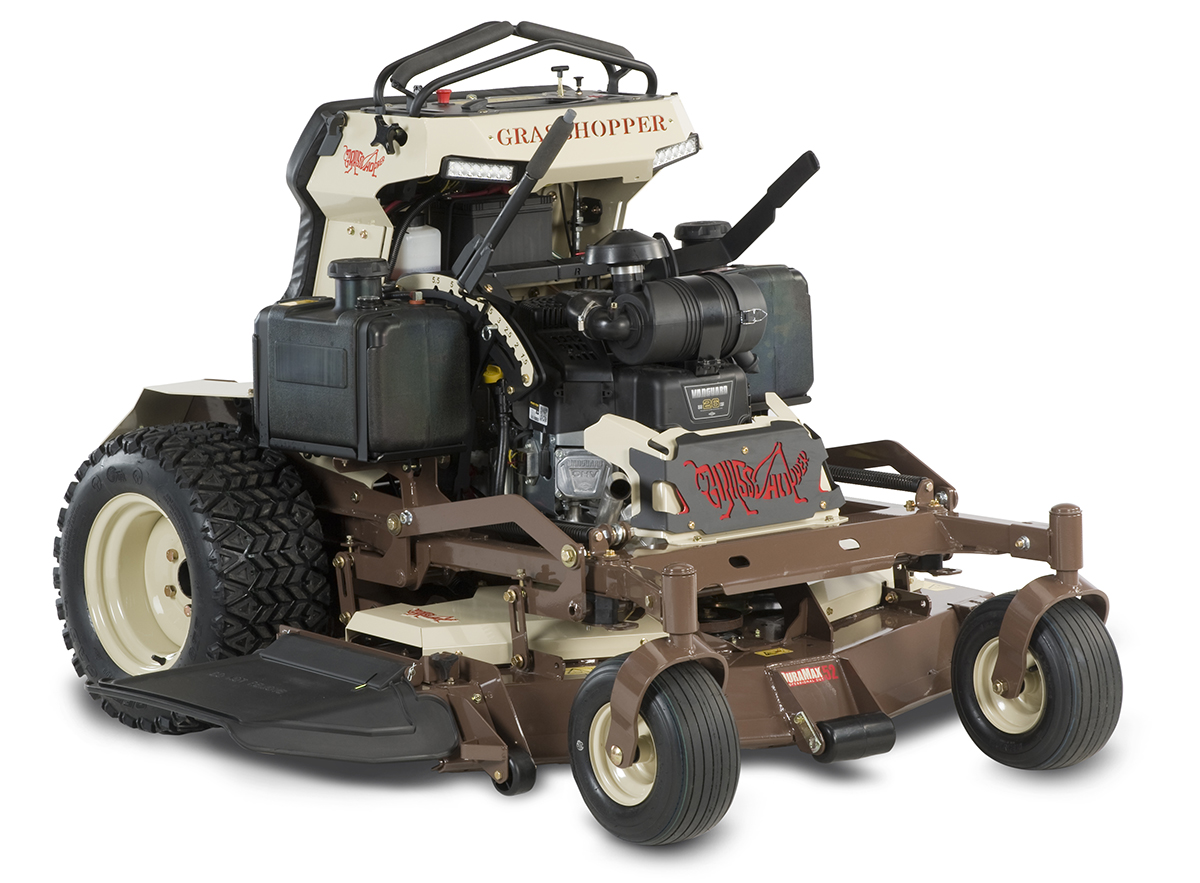

Take your business to the next level. The Stand-On Series is designed for extreme operator proficiency and all-day ergonomic comfort. True ZeroTurn™ maneuverability, outstanding ease-of-use, effortless on/off and legendary Grasshopper cut quality combine to deliver superior performance.
Fleet managers will appreciate the commonality of parts between Stand-On models and the rest of the Grasshopper product line.
DECK SIZES: 52″,61″
COLLECTORS: Not Compatible
Specs:
Type
B&S Vanguard V-Twin
Displacement
49.4 cu. in. (810cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Vertical
Cooling System
Air
Fuel
Gasoline – unleaded
Fuel Capacity
9.25 U.S. Gal. (35.0 l) total fuel capacity (twin tanks with fuel selector)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, cyclonic, remote-mounted engine dual cleaner with replaceable element
Muffler
Ultra-quiet, single, industrial type
Exclusive T-Drive™ Transmission
Tandem 12cc Parker pumps-in-reservoir transmission is specifically designed for turf-care applications
In-line CoolFan™ cooling system and integrated, replaceable, high-efficiency fine-particle filter
Design directs more power to the cutting deck as power-sapping components are eliminated
Command Center Tower
Provides 4.5 inches of adjustable range and is positioned to provide a panoramic view of the mowing environment and easy reach of all switches, levers and controls, including a deep phone/accessory tray with USB charging ports.
Features an extra-wide, extra-thick pad with embroidered Grasshopper logo.
LED Work Lights
LED work lights provide improved visibility in low light situations.
Heavy-Duty Deck
Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
Specially designed cutting chambers enhance airflow for better cut quality
Deck easily converts from side discharge to optional Down Discharge™ mulching
Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Hydraulically Dampened Control Levers
Hydraulically dampened control levers that also provide responsive and effortless maneuvering–including one-hand operation–and return to neutral when released from forward and reverse. Adjustable grip bar accommodates larger and smaller reaches of different operators.
Wide Anti-Slip Platform
Equipped with coil-spring suspension and dampeners, insulating the operator from vibrations, for a smooth, shock-reducing, floating-action ride and minimal bouncing.
Low Center of Gravity
Every Grasshopper mower is designed with a low center of gravity for optimal traction and stability. The centralized location of the engine, T-Drive™ pump and dual fuel tanks on Stand-On models lowers the overall center of gravity, and a total fuel capacity of 9.25 gal/35.0 L reduces the need for frequent refueling.
Warranty
2-year unlimited hours; limited warranty covering parts and labor.
EZ Deck lift lever
Cutting height is effortlessly raised and lowered thanks to the smooth motion of the hand-operated lever.
USB Ports
Two USB Charging Ports
Compact Wheelbase
The compact wheelbase provides an incredible power-to-size ratio.
Easily fit more units on trailers and maneuver through tighter spaces.
Minimal Maintenance
Five grease points and easy top-side access to belts and filters
500-hour transmission fluid change intervals
Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
Robotically-welded steel construction for long-lasting durability
Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
B&S Vanguard Engine
810 cc (49.4 cu. in.) Vanguard, V-Twin, OHV engine
Heavy-duty components enhance power and reliability
Remote-mounted, centrifugal multi-stage air cleaner with advanced debris managements
Extended maintenance intervals
Three-year limited commercial engine manufacturer warranty (see dealer for details)
