Product Details

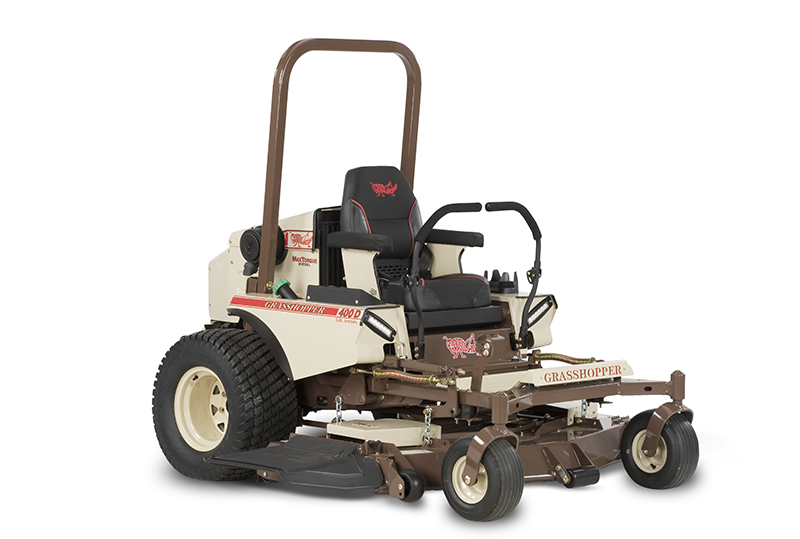

Fast and powerful to get the job done on time, every time. The Grasshopper 400D 1.3L zero-turn lawn mower features the legendary power of a Kubota 3-cylinder MaxTorque™ Clean Diesel engine that delivers best-in-class torque and fuel economy. Commercial landscapes depend on Grasshopper mowers for their comfort, performance, productivity, quality and dependability.
DECK SIZES: 61″,72″
COLLECTORS: 8HT/M1 , 8F/M1, 12F/M1, 12HT/M1, 16/M1
Specs:
Type
Kubota, 3-cyl., MaxTorque™
Displacement
77 cu. in. (1261 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Liquid
Fuel
Diesel – No. 2
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration
Muffler
Ultra quiet, single, industrial type.
Kubota Diesel Engine
EPA Tier 4 Final-compliant 77 cu. in. (1.3L) , 3-cylinder, liquid-cooled Kubota Clean Diesel engine with horizontal crankshaft and pressure lube for smooth, reliable operation
Ultimate Operator Station™
The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach
One or two hand steering system with QuikAjust Tilt™ dual levers with 9-inch comfort range that automatically returns the levers to the neutral position from the forward or reverse position.
Heavy Duty Deck
Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
Specially designed cutting chambers enhance airflow for better cut quality
Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Hydraulic Height Adjustment
Hydraulic Height Adjustment for MidMount DuraMax™ decks 61-inches and larger allows operators to raise and lower cutting height at infinitely variable settings with toggle switch control. Standard on 400 Series models.
Minimal Maintenance
Fewer than 10 grease points and easy top-side access to belts and filters
1,000-hour transmission fluid change intervals
Self-tensioning belts minimize cost and labor on routine maintenance
Reduced Maintenance
Only two Access-Eze™ lubrication points cut maintenance time up to 95%
Self-tensioning belts minimize cost and labor on routine maintenance
Vigilant Operator Presence System™
Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
Dampened steering levers that return to neutral from forward and reverse
Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
Design-Matched G2 Transmission
Rugged G2 transmission with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors
CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency
Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval
Warranty
Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only.
Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Rugged Construction
Robotically-welded steel construction for long-lasting durability
Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
High Temperature Clutch Cut Out
Equipped with a High Temperature Clutch Cut-Out that automatically disengages the PTO if engine temperature reaches a certain point to prevent engine damage
Premier Suspension Seat
Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
