Product Details

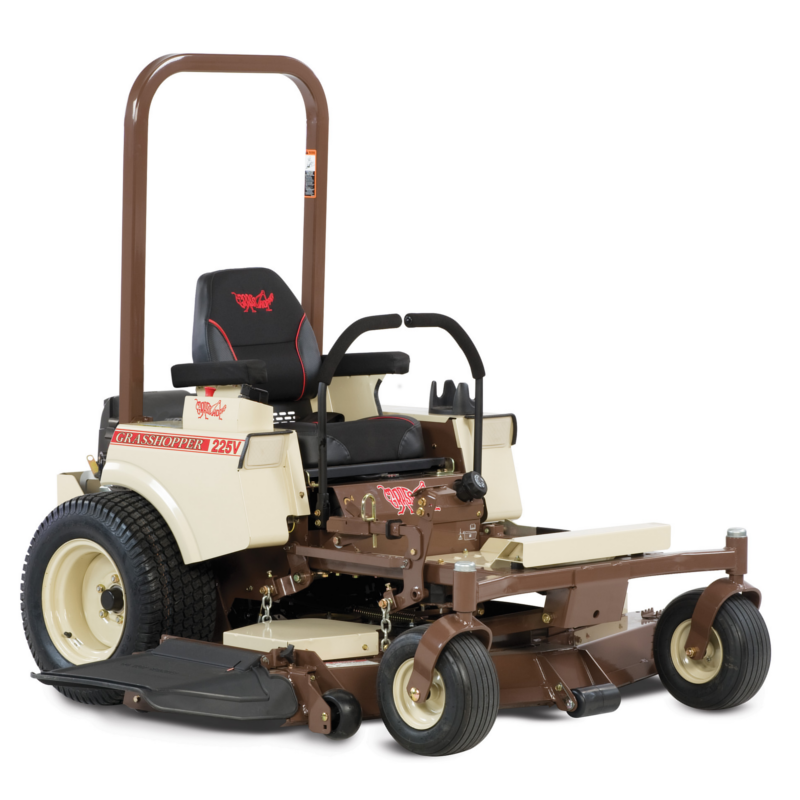

A compact, Grasshopper true zero-turn riding lawn mower designed with commercial-grade features such as comfort, durability, performance, ease of maintenance, and responsiveness. The zero turn Model 225V-G4 mower utilizes heavy-duty Hydro-Gear ZT-4400 commercial transaxles with integrated cooling fan that feature 1-3/8-inch axles for longer service life. Ideal for commercial landscapers and large-acreage homeowners.
DECK SIZES – 52″, 61″
COLLECTORS – 8HT , 8F/M2
Specs:
Type
Kohler Confidant, V-Twin
Displacement
45.6 cu. in. (747 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Vertical
Cooling System
Air
Fuel
Gasoline – unleaded
Fuel Capacity
6.5 U.S. Gal. (26.6 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty cyclonic air filter with QUAD-CLEAN™ multi-stage air filtration
Muffler
Ultra quiet, single, industrial type.
Features & Benefits:
Kohler Confidant Engine
Professional-grade 747 cc Kohler Confidant OHV V-Twin engine
Designed to maximize airflow and reduce operating temperatures for extended service life
Heavy-duty cyclonic air filter with Quad-Clean™ multi-stage air filtration
Full-pressure lubrication to protect critical components
QuikAjust Tilt™ Levers
QuikAjust Tilt™ steering levers with “no tools” adjustment provide a 9-inch range for maximum comfort and fit while maintaining natural arm and wrist positions.
Hydro-Gear ZT-4400 Transmission
The G4 Hydro-Gear ZT-4400 transmissions are designed to provide powerful, smooth response The heavy-duty, self-contained commercial transaxles are integrated with a cooling fan and feature 1-3/8-inch axles for longer service life. You’ll also enjoy best-in-class transmission fluid change intervals after a 100-hour break-in period, reducing costs and maintenance time.
Heavy-duty Deck
Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
Specially designed cutting chambers enhance airflow for better cut quality
Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
QuikAjust® Drop Pin Height Adjustment
Raise and lower the deck easily with foot pedal and drop pin for precision cutting heights between 1.0 and 5.0 inches.
Warranty
Commercial Use: 2-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Residential Use: 4-year or 800-hour (whichever comes first); limited warranty: First two years covering parts and labor, last two years covering parts only.
Vigilant Operator Presence System™
Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt\
Dampened steering levers that return to neutral from forward and reverse
Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
Ultimate Operator Station™
The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support with sliding 2-inch fore and aft adjustment for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and foldable armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
Operational controls including throttle, ignition and push/pull PTO switches, choke, angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
One or two hand steering system with QuikAjust Tilt™ dual levers with 9-inch comfort range that automatically returns the levers to the neutral position from the forward or reverse position.
Reduced Maintenance
Only two Access-Eze™ lubrication points cut maintenance time up to 95%
Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
Robotically-welded steel construction for long-lasting durability
Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
