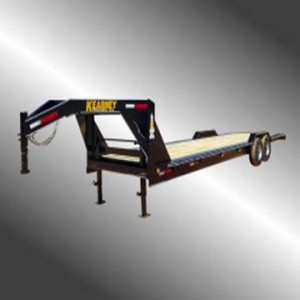

GOOSENECK TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER 14,000lb GVWR

Standard Features



■ COUPLER: 2 5/16″ – GN ADJ. W/ SAFETY PIN & 2 – SET SCREWS
■ TIRES: NEW ST235/80/R/16″ RADIALS LOAD RANGE “E” 10-PLY
■ CROSSMEMBERS: 3″ X 3.5# CHANNEL IRON – ON 24″ CENTERS


■ SAFETY CHAIN: 3/8″ CHAIN W/ SAFETY HOOKS
■ WHEELS: 8 – HOLE POWDER COATED SILVER MODS
■ FLOOR: PRESSURE TREATED/ 2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ JACK: TWO – 12K SPRING LOADED DROP LEG W/ SAND FOOT
■ SPARE MOUNT: SECURELY MOUNTED INSIDE NECK (MOUNT ONLY)
■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS


■ PLUG: 7 – WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME
■ TIE DOWNS: 3″ STAKE POCKETS W/ RUB RAIL WELDED TO OUTSIDE
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-*INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ RAMPS: 5′ HD CHANNEL IRON SLIDE IN RAMPS W/ HOLDERS *2 – RAMP HANGING ROD LIPS ON BACK
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS *ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ FENDERS: 9″ X 72″ 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS
■ NECK RISER: 30’& SMALLER 8″X11.5# CHANNEL IRON *32’& LARGER 10″X15.3# CHANNEL IRON
■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH


■ SUSPENSION: EQUALIZER W/ 5 LEAVE SLIPPER SPRINGS SYSTEM
■ NECK: 30’& SMALLER 8″X11.5# CHANNEL IRON *32’& LARGER 10″X15.3# CHANNEL IRON
■ TRIM: STANDARD “WHITE” OR “BLACK” PIN STRIPING


■ AXLES: TWO – 7K AXLES / CAMBERED W/ ACCU-LUBE HUBS
■ FRAME: 30’& SMALLER 8″X11.5# CHANNEL IRON W/ 5″X3″TRUSS *32’& LARGER 10″X15.3# CHANNEL IRON W/ 5″X3″TRUSS
■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


■ BRAKES: ONE – ELECTRIC BRAKE W/ BREAK AWAY & CHARGER
