Product Details

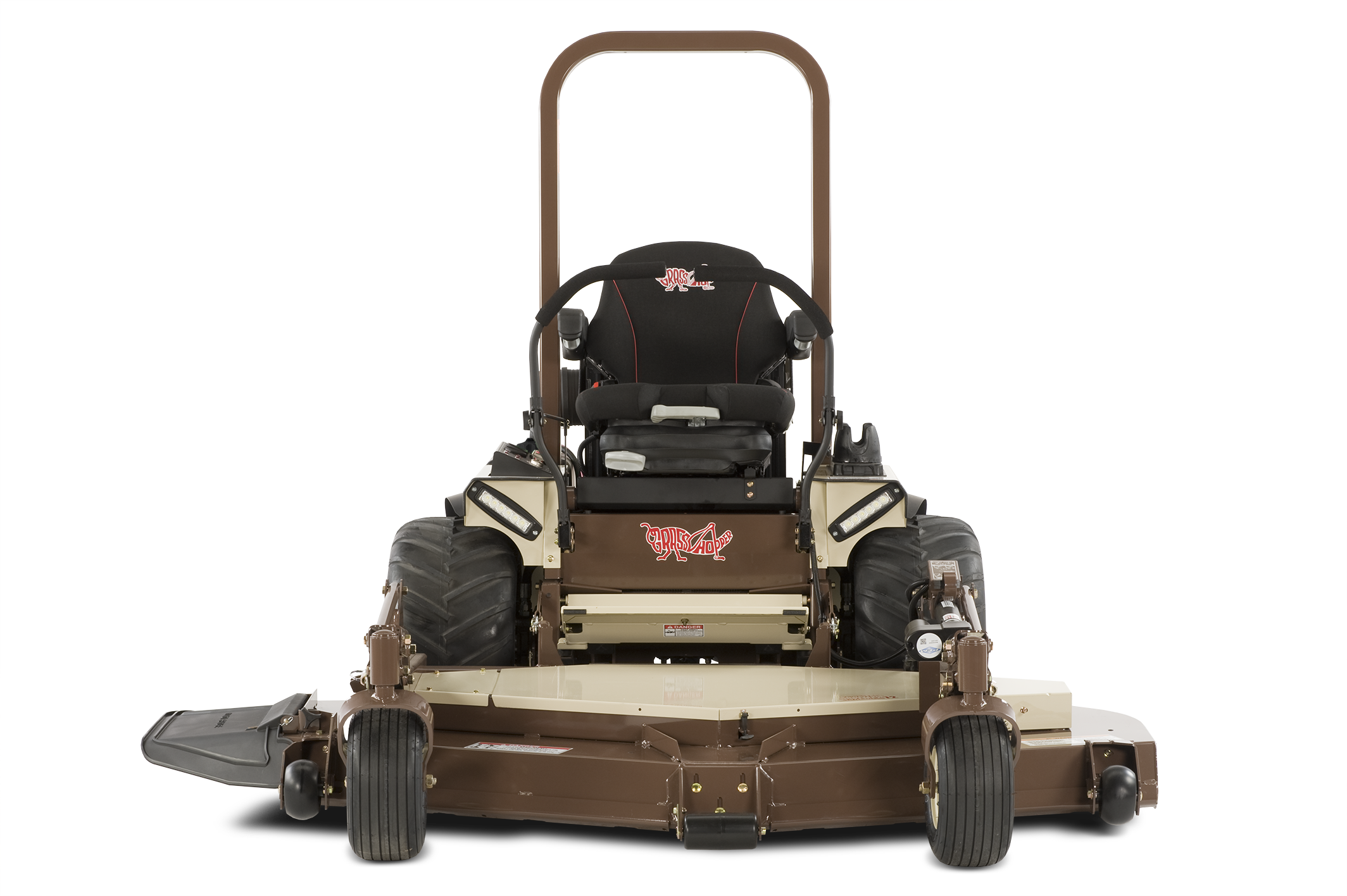

Ideal for fleet operations, the Grasshopper Model 932 zero-turn riding lawn mower delivers maximum power to meet the needs of commercial operators in virtually any condition. The front-mount mower is built to deliver reliable performance year-after-year. Get year-round productivity with a choice of turf renovation and snow removal implements that mount in place of the out-front deck. Use the exclusive PowerFold® deck lift/electric height adjustment to rotate the deck up for easy cleaning or to fit more mowers on the same trailer.
DECK SIZES: 61″, 72″
COLLECTORS: 8F, 8HT, 12F, 12HT, 15B, HighLift™ 15B, 25
Specs:
Type
Kubota, MaxTorque™, 3-cyl.
Displacement
58.7 cu. in. (962 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Liquid
Fuel
Gasoline – unleaded
Fuel Capacity
7.2 U.S. Gal. (27.3 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration
Muffler
Ultra quiet, single, industrial type
QuikConverter™ Implement Capability
Add or remove implements in minutes without tools with QuikConverter™ Implement System
Equip your out-front mower with a wide range of tools, including turf cleanup, renovation and snow removal implements that extend your productivity year-round
Minimal Maintenance
Fewer than 10 grease points and easy top-side access to belts and filters
1,000-hour transmission fluid change intervals
Self-tensioning belts minimize cost and labor on routine maintenance
Vigilant Operator Presence System™
Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
Dampened steering levers that return to neutral from forward and reverse
Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
PowerFold® Electric Deck Lift
Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry’s first electric deck lift (introduced in 2004).
PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.
The feature also adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.
Heavy-duty Deck
Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
Specially designed cutting chambers enhance airflow for better cut quality
Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Kubota MaxTorque™ Gasoline
962 cc, 3-cylinder, liquid-cooled Kubota MaxTorque™ gasoline engine with horizontal crankshaft and pressure lube for smooth, reliable operation
Design-Matched G3 Transmission
Rugged G3 hydrostatic transmission with auxiliary cooling fans, HydroGear variable displacement 21cc piston-type pumps and high-torque Parker wheel motors with single serpentine belt for more efficient power transfer to the drive.
CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency
Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval
Wide Stance Single-Fork Tail Wheels
Wide stance single-fork tail wheels provide increased flotation and stability for a smoother ride.
Hydraulic Lift
Hydraulic Lift raises the front of the deck to maneuver over soft or uneven ground and to clear curbs, trailer ramps and other obstacles, operated by a lift switch on the steering lever.
Built for Long Life
Robotically-welded, high-grade steel construction and I-beam reinforcement for long-lasting durability
Centered-bearing design provides greater load-bearing capacity to easily handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
LED Work Lights
LED work lights provide improved visibility in low light situations.
USB Ports
Two USB Charging Ports
Warranty
Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only.
Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
High Temperature Clutch Cut Out
Equipped with a High Temperature Clutch Cut-Out that automatically disengages the PTO if engine temperature reaches a certain point to prevent engine damage
Ultimate Operator Station™
The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
Operational controls including throttle, ignition and push/pull PTO switches, angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach.
One- or two handed operation with QuikAjust Tilt™ dual levers with 9-inch comfort range to custom fit operator’s reach. Levers automatically return to neutral from either forward or reverse position and are less strenuous than riding mowers with steering wheels.
Premier Suspension Seat
Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
