Product Details

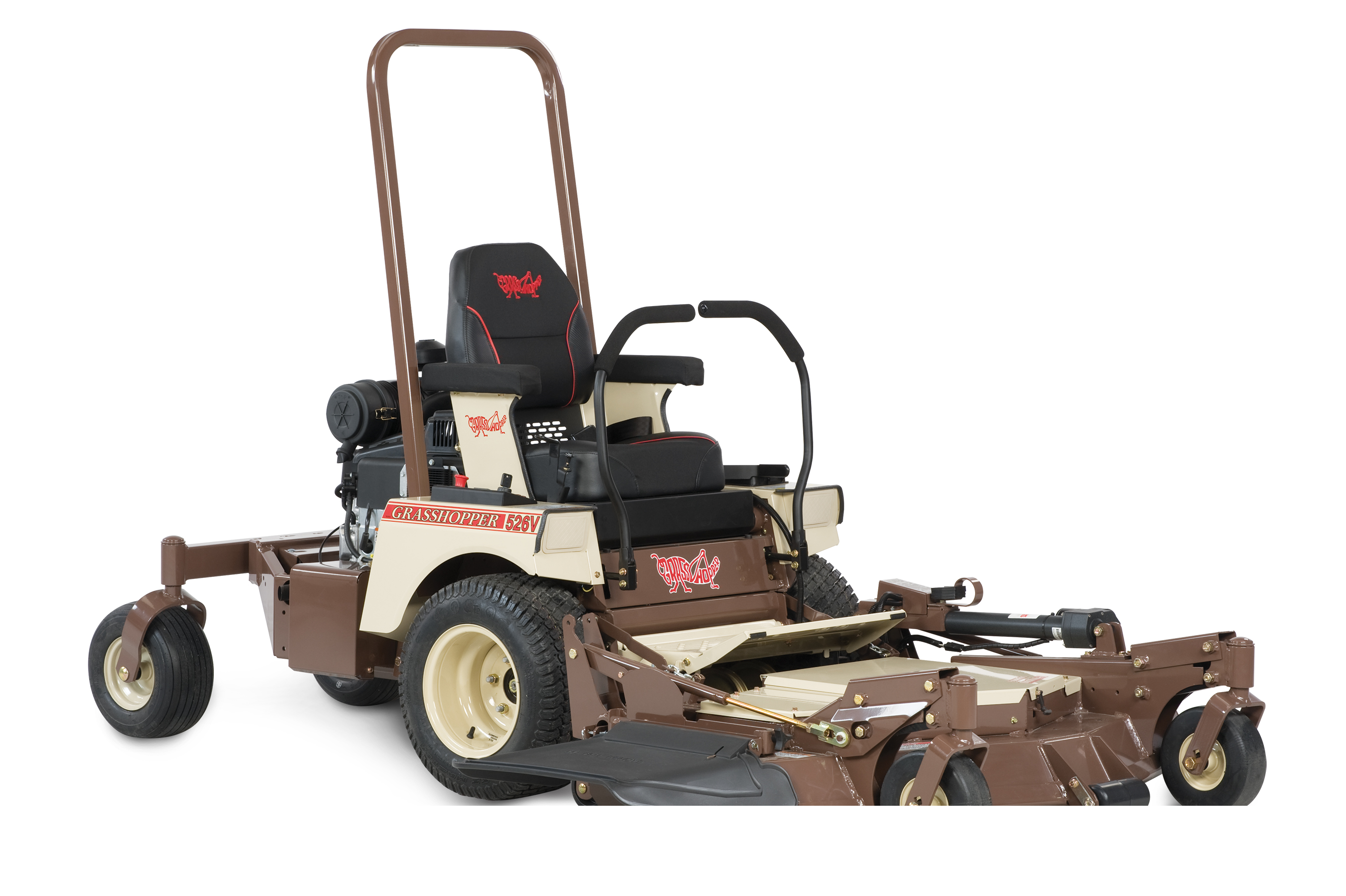

The 526V-52 riding lawn mower one of the smallest and most compact FrontMount™ mowers available. Enjoy all the comfort, maneuverability, cut quality and durability that only Grasshopper zero-turn mowers provide. Raise and lower the front-mounted deck for easy cleaning and compact storage using the PowerFold® deck lift/electric height adjustment.
DECK SIZES: 52″
COLLECTORS : 8F, 8HT
Specs:
Type
B&S Vanguard, V-Twin
Displacement
49.4 cu. in. (810 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Vertical
Cooling System
Air
Fuel
Gasoline – unleaded
Fuel Capacity
4.0 U.S. Gal (15.1 l)
Optional Fuel Capacity
NA
Air Cleaner
Integrated, cyclonic air cleaner with 5-step debris management system
Muffler
Ultra quiet, single, industrial type.
Heavy-Duty Deck
Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
Specially designed cutting chambers enhance airflow for better cut quality
Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Vigilant Operator Presence System™
Standard, low profile operator protection structure (OPS) with an adjustable seatbelt
Dampened steering levers that return to neutral from forward and reverse
Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
PowerFold® Electric Deck Lift
Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry’s first electric deck lift (introduced in 2004).
PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.
The feature also adjusts cutting height between 2.0 and 4.5 inches and controls deck lift functions using a single switch.
Ultimate Operator Station™
The deep-cushioned, deluxe Premium Comfort Seat features a coil-spring suspension and padded lumbar support for all-day comfort. Iso-mounting eliminates vibration before it reaches the seat, and both padded seat and armrests are covered in scuff-resistant, breathable CoolTemp Cordura® fabric, which dissipates heat and won’t tear or crack with extended use.
Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach
One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Warranty
Commercial Use: 2-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Residential Use: 4-year or 800-hour (whichever comes first); limited warranty: First two years covering parts and labor, last two years covering parts only.
Design-Matched Transmission
Design-matched, fully hydraulic Parker HTE Series integrated pump-and-wheel-motor transmissions with in-line cooling fans and fine-particle filtration
No power-robbing gearbox or other wear parts for longer service life
Provides best-in-class transmission fluid change interval with no break-in period, reducing costs and maintenance time
PowerFold® Electric Deck Lift
Standard on all FrontMount™ DuraMax® decks, PowerFold® is the zero-turn mower industry’s first electric deck lift (introduced in 2004).
PowerFold® rotates the deck nearly 90 degrees to provide easy access to the underside of the deck for simplified maintenance and mulching package installation, plus space-saving portability and storage.
The feature also adjusts cutting height between 1.25 and 5.0 inches and controls deck lift functions using a single switch.
Reduced Maintenance
Only two Access-Eze™ lubrication points cut maintenance time up to 95%
Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
Robotically-welded steel construction for long-lasting durability
Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
B&S Vanguard Engine
810 cc (49.4 cu. in.) Vanguard, V-Twin, OHV engine
Heavy-duty components enhance power and reliability
Remote-mounted, centrifugal multi-stage air cleaner with advanced debris managements
Extended maintenance intervals
Three-year limited commercial engine manufacturer warranty (see dealer for details)
