Product Details
WARRANTY
3 Year Limited (No hour limit)
3 Year Limited Engine
LITERATURE
BlackHawk Parts Manual
REDEFINE YOUR MOWING EXPERIENCE

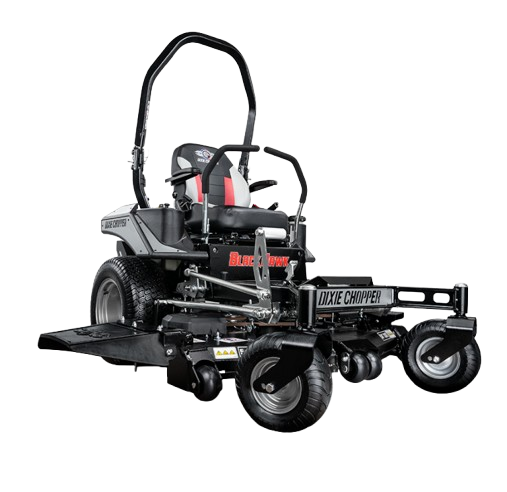

The Dixie Chopper BlackHawk lawn mower provides the ultimate mowing experience with superior value, advanced operator controls, commercial grade components, and unmatched performance.
OCDC – Foot-operated to keep your hands on the steering levers.
Parker HTE – Smooth steering and 1000 hour oil change intervals.
Peer Spindles – Maintenance free with Contamination Exclusion Technology.
48″, 54″ and 60″ Decks – Deep 7 gauge shell to tackle deep grass with ease
Proven Power – Equipped with an industry preferred 24 horsepower Kawasaki® FS engine for trusted and reliable performance.
Total Comfort – The high-back, padded, and over-sized bolstered seat hugs your torso for ultimate comfort.
DIXIE CHOPPER ACCESSORY COMPATIBILITY CHART
DIXIE CHOPPER BLACKHAWK ACCESSORIES
Striping Kit
902985
Mulch Kit 54″
4385108
Twist Blade 54″
301245T
“N” (3″ Wide) Blade 54″
301245N
Eliminator Blade 54″
301245E
Discharge Enhancement Kit 54″
903473
PECO Pro 2B+ Bagger
38120905
Black Hard-Top Sunshade
4421380
White Hard-Top Sunshade
4421381
Electric Deck Lift
4366006
Springer Forks (set)
4369086
Run-Flat M/C Tire (Assembly)
402065
Run-Flat Rib Tire (Assembly)
402091
Light Kit
4382367
Suspension Seat
4368966
Hitch Kit
4369190
Deck Bumper Kit
671082
Parker HTE & HTJ Oil Change Kit
903458
SPECIFICATIONS:
ENGINE
Manufacturer
Kawasaki FS
Horsepower
24 hp
Displacement
726cc
Air-cleaner
2-stage
Cooling
Air-cooled
Starter
Electric
Engine warranty
3-Year
DRIVE SYSTEM
Dual hydrostatic
Parker® HTE
Ground speed
9 mph
Parking brake
Integrated in transaxle
Towing capacity
200 lbs
MOWER DECK
Deck Size
54″
Acres/hour
3.9
Cutting height
1″-5″
OCDC (operator controlled discharge chute)
Foot-operated (standard)
Deck height adjustments
Manual lift, 1/4″ increments
Electric Lift
Optional
Deck engagement
Ogura® 150 ft-lbs
Construction
7 ga formed & welded, Abrasion Resistance Baffles
Blades
(3) – 2.5″ x 19″
Blade Tip Speed
18,500 fpm
Spindles
1.25″ effective diameter machined shaft
Spindle Housings
Peer® Turf Xtreme™ ductile iron (sealed)
Anti-scalp rollers
4
Pulleys
7 ga steel deep groove
GENERAL
Battery
12 Volt, 350cca
Digital display
Tachometer, hour meter, fuel gauge
Fuel capacity
7 gallons
Rear tires
23 x 10.5-12 GrassMaster
Front tires
13 x 6.5-6
Frame
Welded C-channel, 7 ga formed
Fenders
Stainless steel
Floor-pan
Removable, steel
Seat
24″ high-back adjustable padded seat w/ armrests
Springer Forks
Optional
DIMENSIONS
Overall height (rollbar down)
50″
Overall height (rollbar up)
71″
Overall width (chute down)
69.6″
Overall width (chute up)
55.4″
Overall length (rollbar down)
85.8″
Overall length (rollbar up)
81.3″
Weight
1114 lbs
