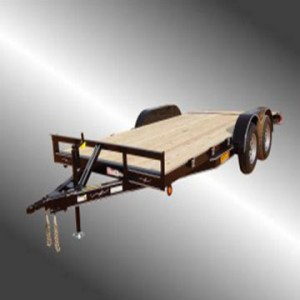

BUMPER TANDEM AXLE STANDARD DUTY WOOD FLOOR CAR HAULER 7,000lb GVWR

Standard Features



■ Coupler: 2″ – 7K Ram w/ Coupler Hole Cover Plate
■ Tires: New ST 205/75/R/15″ Radials Load Range “C” 6-Ply
■ Floor: Pressure Treated/2″X8″ Pine, Double Screwed/Per/Run * Floor Is Raised To The Top Of Frame 8″ Door  Clearance


■ Safety Chains: 1/4″ Chain w/ Safety Latching Hooks
■ Wheels: 5- Hole Powder Coated Silver Mods / GM-5″-BP
■ Dove Tail: 24″ Integrated Frame Diamond Plate Steel


■ Jack: 2K Top Wind w/ Interchangeable Pin On Sand Foot * Jack Is Set Back For Tailgate Opening Clearance
■ Tie Downs: 3″ Stake Pockets (16’& Smaller-10)(18′-12)(20′-14)
■ Stickers: Warning & Safety & Reflective Kearney Logos


■
Plug: 4 – Way Molded Harness /Grounded To Frame
■ Ramps: 5′ Slide In Rolled Channel Iron Ramps W/ Holders
■ Ext. Prepping: 2 Stage Degreasing And Acid Phosphate Wash W/ Rust-* Inhibitor To Ensure Maximum Paint Adhesion


■ Lights: “LED” Rubber Mounted Running, Stop, Turn, & Clearance
■ Tongue: 16′ & Smaller – 4 Channel Iron Wrap Around * 18′ & Larger – 5″ Channel Iron Wrap Around
■ Ext. Finish: Painted With A Newly Inovated, Durable High Gloss * Acrylic Polyurethane Full Two-Component Finish


■ Fenders: 9″ x 72″ 14GA Straight Tread Plate W/ Smooth Backings
■ Frame: 5″ x 3″ x 1/4″ Angle Iron
■ Trim: Standard “White” Or “Black” Pin Striping


■Suspension: Equalizer / 4-Leave Eye-to-Eye Springs System

■ Crossmembers: 3″ Channel Iron On 24″ Ctr
■ Warranty: Limited Two Year Kearney Guarantee


■ Axles: Two – 3.5K Axles/ Cambered W/ Accu-Lube Hubs
■Bump Rails: 2-3/8″ Pipe 13″ Tall
