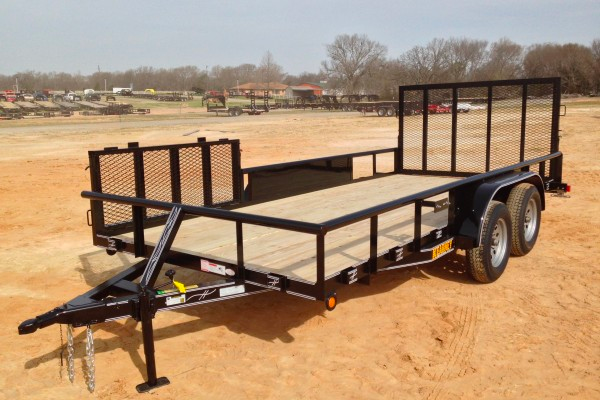

BUMPER TANDEM AXLE STANDARD DUTY UTILITY 7,000lb GVWR

Standard Features




COUPLER: 2″ – 7k RAM W/COUPLER HOLE COVER PLATE
■ TIRES: NEW ST205/75/R/15″ RADIALS LOAD RANGE “C” 6-PLY
■ FLOOR: PRESSURE TREATED/2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ SAFETY CHAIN: 1/4″ CHAIN W/ SAFETY HOOKS
■ WHEELS: 5 – HOLE POWDER COATED SILVER MODS / GM-5″-BP
■ MISC: 2 – RAMP HANGING LIPS ON BACK (NO RAMPS)


■ JACK: 2K TOP WIND W/ INTERCHANGEABLE PIN ON SAND FOOT * JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE
■ TIE DOWNS: FOUR – 3″ STAKE POCKETS ONE ON EACH CORNER
■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS


■ PLUG: 4 – WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME
■ TONGUE: 16′ & SMALLER – 4″ CHANNEL IRON * 18′ & LARGER – 5″ CHANNEL IRON
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST- * INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ FRAME: 4″ X 3″ X 1/4″ ANGLE IRON
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ FENDERS: 9″ X 72″ 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS
■ CROSSMEMBERS: 3″ X 2″ X 3/16″ ANGLE IRON
■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH


■ SUSPENSION: EQUALIZER W/ 4-LEAVE EYE-TO-EYE SPRINGS SYSTEM
■ UPRIGHTS: 2″ X 2″ X 1/8″ ANGLE IRON / 15″ TALL
■ TRIM: STANDARD “WHITE” OR “BLACK” PIN STRIPING


■ AXLES: TWO – 3.5K IDLER AXLE /CAMBERED W/ ACCU-LUBE HUBS
■ TOP RAILS: 16’& SMALLER 2″X2″X1/8″ AG SQ-END W/BOARD HOLDERS *18’& LARGER 3″X2″X3/16″ AG SQ-END W/BOARD HOLDERS
■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
