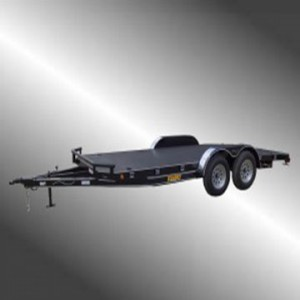

BUMPER TANDEM AXLE STANDARD DUTY STEEL FLOOR CAR HAULER 7,000lb GVWR

Standard Features



■ Coupler: 2″ – 7K Ram Coupler w/ Hole Cover Plate
■ Tires: New ST205/75/R/15″ Radials Load Range “C” 6-Ply
■ Dove Tail: 4′- For Easy Low To The Ground Loading


■ Safety Chains: 1/4″ Chain w/ Safety Latching Hooks
■ Wheels: 5- Hole Powder Coated Silver Mod / GM-5″-BP
■ Stickers: Warnings & Safety & Reflective Kearney Logos


■ Jack: 2K Fold Up w/ Sand Foot, Set In Center
■ Tie Downs: 3″ Stake Pockets (16’& Smaller-10) (18′-12) (20′-14)* Four- Weld On Top Of The Floor D-Rings
■ Ext. Prepping: 2 Stage Degreasing And Acid Phosphate Wash W/ Rust *Inhibitor To Ensure Maximum Paint Adhesion


■ Plug: 7 – Way Molded  Plug Harness /Grounded To Frame
■ Ramps: 5′ Slide In Rolled Channel Iron Ramps W/ Holders
■ Ext. Finish: Painted With A Newly Inovated, Durable High Gloss* Acrylic Polyurethane Full Two-Component Finish


■ Lights: “LED” Rubber Mounted Running, Stop, Turn, & Clearance
■ Tongue: 5″ x 3″ x 1/4″ Angle Iron Wrap Around
■ Undercoating: Completely Coated W/ A Durable Protective Finish


■ Fenders: 9″ x 72″ Tear Drop Smooth W/ Smooth Backing Plates
■ Frame: 5″ x 6.7# Channel Iron W/ Front Corners 45ed
■ Trim: Standard “White” Or “Black”  Pin Striping* Chrome Gravel Gaurds On Front Of Fenders


■ Suspension: Equalizer W/ 4 Leave Eye to Eye Springs System
■ Crossmembers: 3″ x 2″ x 3/16″ Angle Iron On 24″ Centers
■ Warranty: A Limited Two Year Kearney Guarantee


■ Axles: Two – 3.5K Axles /Cambered W/ Accu-Lube Hubs
■ Bump Rails: 2-3/8″ Pipe Bump Rail / 8″ Tall



■ Brakes: One – Electric Brake W/ Break Away & Charger
■ Floor: 1/8″ Steel Diamond Tread Plate Sheet Metal
