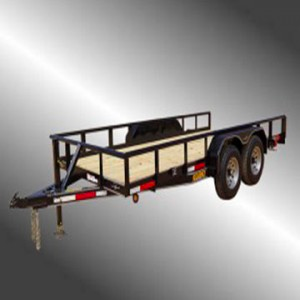

BUMPER TANDEM AXLE MEDIUM DUTY UTITILY 10,400lb GVWR

Standard Features



■ COUPLER: 2-5/16″ 12.5K RAM W/ COUPLER HOLE COVER PLATE
■ BRAKE: ONE – ELECTRIC BRAKE W/ BREAK AWAY & CHARGER
■ CROSSMEMBERS: 3″ X 2″ X 3/16″ ANGLE IRON


■ SAFETY CHAIN: 1/4″ CHAIN W/ SAFETY HOOK
■ TIRES: NEW ST225/75/R/15″ RADIALS LOAD RANGE “D” 8-PLY
■ UPRIGHTS: 3″ X 2″ X 3/16″ ANGLE IRON / 16″ TALL


■ JACK: 7K SIDEWIND DROP LEG W/ SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE
■ WHEELS: 6 – HOLE POWDER COATED SILVER MODS
■ TOP RAILS: 2-3/8″ PIPE RAILING, SQ-END W/ BOARD HOLDERS


■ PLUG: 7-WAY MOLDED HARNESS / GROUNDED TO FRAME
■ TIE DOWNS: SIX – 3″ STAKE POCKETS (3-EA SIDE F&B)
■ FLOOR: PRESSURE TREATED/2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ RAMPS: 4′ SLIDE IN ROLLED CHANNEL IRON RAMPS W/ HOLDERS * 2-RAMP HANGING LIPS ON BACK
■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS


■ FENDERS: 9″ X 72″ 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS
■ TONGUE:5″ CHANNEL IRON WRAP AROUND
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST- * INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ SUSPENSION: EQUALIZER W/ 5 LEAVE EYE TO EYE SPRINGS SYSTEM
■ FRAME: 20’& SMALLER 4″ X 3″ X 1/4″ ANGLE IRON * 24′ – 5″ X 3″ X 1/4″ ANGLE IRON
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ AXLE: TWO – 5.2K AXLES / CAMBERED W/ ACCU-LUBE HUBS
