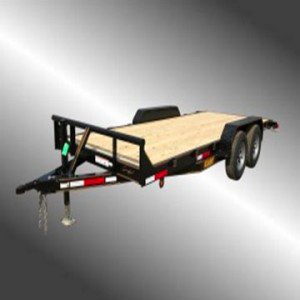

BUMPER TANDEM AXLE MEDIUM DUTY HAULER 10,400lb GVWR

Standard Features



■ COUPLER: 2-5/16″ 12.5K RAM W/ COUPLER HOLE COVER PLATE
■ BRAKES: ONE – ELECTRIC BRAKE W/ BREAK AWAY & CHARGER
■ BUMP RAILS: 2 3/8″ PIPE BUMP RAIL / 16″ TALL


■ SAFETY CHAIN: 1/4″ CHAIN W/ SAFETY HOOKS
■ TIRES: NEW ST225/75/R/15″ RADIALS LOAD RANGE “D” 8-PLY
■ FLOOR: PRESSURE TREATED/2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ JACK: 7K DROP LEG W/ SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE
■ WHEELS: 6 – HOLE POWDER COATED SILVER MODS
■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS


■ PLUG: 7 – WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME
■ TIE DOWNS: 3″ STAKE POCKETS (12’&14′-6)(16’&18′-8)(20′-10)
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/ RUST-*INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ RAMPS: 5′ SLIDE IN ROLLED CHANNEL IRON RAMPS W/ HOLDERS * 2-RAMP HANGING LIPS ON BACK
■ EXT. FINISH: PAINTED WITH A NEWLY INOVATED, DURABLE HIGH GLOSS *  ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ FENDERS: 9″ X 72″ 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS
■ TONGUE: 5″ CHANNEL IRON WRAP AROUND
■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH


■ SUSPENSION: EQUALIZER W/ 5 LEAVE EYE TO EYE SPRINGS SYSTEM
■ FRAME: 6″ X 8.2# CHANNEL IRON
■ TRIM: STANDARD “WHITE” OR “BLACK” PIN STRIPING


■ AXLES: TWO – 5.2K AXLES / CAMBERED W/ACCU-LUBE HUBS
■ CROSSMEMBERS: 3″ X 2″ X 3/16″ ANGLE IRON / RAISED FLOORING
■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
