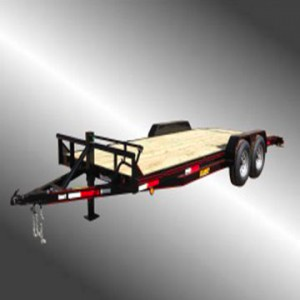

BUMPER TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER 14,000lb GVWR

Standard Features



■ COUPLER: 2-5/16″ 14K RAM W/COUPLER HOLE COVER PLATE
■ BRAKES: ONE – ELECTRIC BRAKE W/BREAK AWAY & CHARGER
■ BUMP RAILS: 3″ PIPE BUMP RAIL / 20″ TALL


■ SAFETY CHAIN: 3/8″ CHAIN W/SAFETY HOOKS
■ TIRES: NEW ST235/80/R/16″ RADIALS LOAD RANGE “E” 10-PLY
■ FLOOR: PRESSURE TREATED/2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ JACK: 10K SPRING LOADED DROP LEG W/SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE
■ WHEELS: 8 – HOLE POWDER COATED SILVER MODS
■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS


■ PLUG: 7 – WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME
■ TIE DOWNS: 3″ STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ RAMPS: 5′ HD CHANNEL IRON SLIDE IN RAMPS W/HOLDERS *2 – RAMP HANGING ROD LIPS ON BACK
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ FENDERS: 9″ X 72″ 14GA STRAIGHT TREAD PLATE W/SMOOTH BACKINGS
■ TONGUE: 5′ X 3″ X 1/4″ ANGLE IRON WRAP AROUND *22’& LARGER 6″ X 8.2″ CHANNEL IRON WRAP AROUND
■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH


■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM
■ FRAME: 20’& SMALLER 6″ X 8.2# CHANNEL IRON *22’& LARGER 8″ X 11.5# CHANNEL IRON
■ TRIM: STANDARD “WHITE” OR “BLACK” PIN STRIPING


■ AXLES: TWO – 7K AXLES / CAMBERED W/ACCU-LUBE HUBS
■ CROSSMEMBERS: 3″ X 3.5# CHANNEL IRON / RAISED FLOORING
■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
