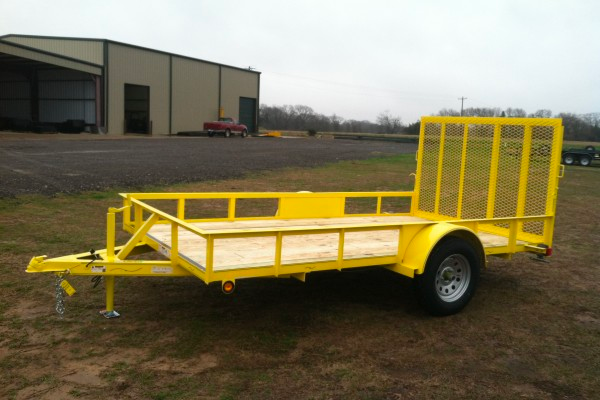

BUMPER SINGLE AXLE STANDARD DUTY UTILITY 3500lb GVWR

Standard Features



■ COUPLER: 2″ – 7K RAM W/COUPLER HOLE COVER PLATE
■ TIRES: NEW ST205/75/R/15″ RADIALS LOAD RANGE “C” 6-PLY
■ FLOOR: #1 PRES TREATED/2″X8″PINE,DOUBLE SCREWED/PER/RUN


■ SAFETY CHAIN: 1/4″ CHAIN W/ SAFETY HOOKS
■ WHEELS: 5 – HOLE POWDER COATED SILVER MODS / GM-5″-BP
■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS


■ JACK: 2K TOP WIND W/ INTERCHANGEABLE PIN ON SAND FOOT * JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE
■ TONGUE: 5’X 12’& SMALLER – 3″ X 2″ X 3/16″ ANGLE IRON * 5’X 14’& ALL 77″ & 83″ WIDES – 4″ CHANNEL IRON
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-* INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION


■ PLUG: 4 – WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME
■ FRAME: 3″ X 2″ X 3/16″ ANGLE IRON
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH


■ LIGHTS: “LED” RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE
■ CROSSMEMBERS: 3″ X 2″ X 3/16″ ANGLE IRON
■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH


■ FENDERS: 9″ X 32″ ROLLED SMOOTH W/SMOOTH BACKING PLATES
■ UPRIGHTS: 2″ X 2″ X 1/8″ ANGLE IRON
■ TRIM: STANDARD “WHITE” OR “BLACK” PIN STRIPING


■SUSPENSION: 4-LEAVE EYE-TO-EYE SPRINGS SYSTEM
■ TOP RAILS: 2″ X 2″ X 1/8″ ANGLE IRON SQ-ENDS W/ BOARD HOLDERS
■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


■ AXLES: ONE – 3.5K IDLER AXLE /CAMBERED W/ ACCU-LUBE HUBS
